MEGA SLED

 Features

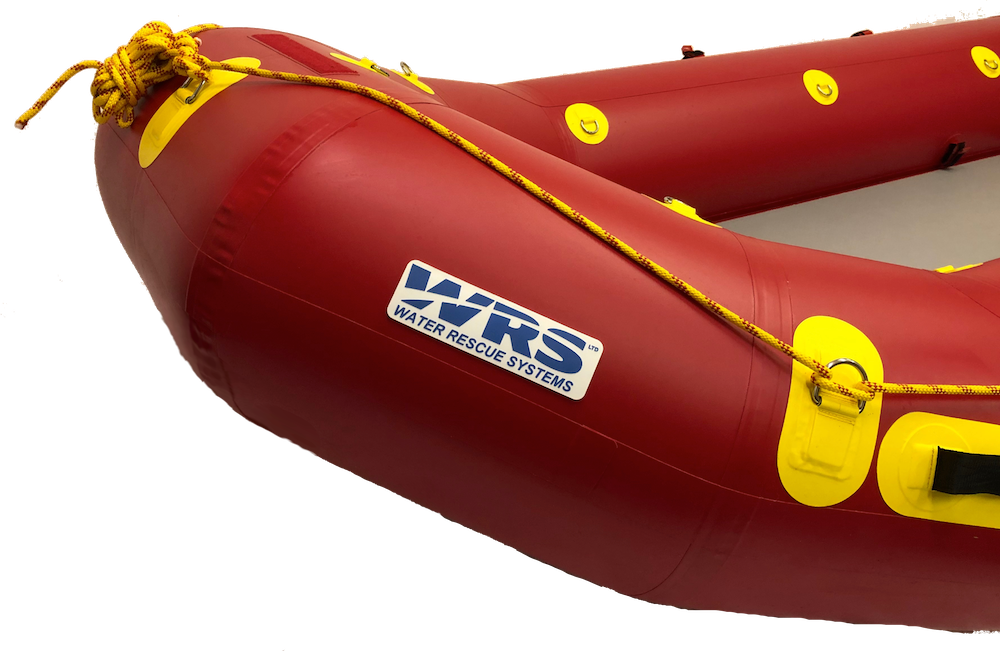

• High Volume Sponson Tubes- With a raised bow height the sled is able to handle swift water tethers and rescues reducing the risk of the bow diving when loaded with a rescuers or causality.  The high volume sled maximises stability and confidence.
• Inflation and over pressure valves - Leafield valves are used and are widely recognised as world leaders in valve manufacturing. Our valves all work with boat inflation kits.

• Low profile grab handles - Fitted with 6 low profile grab handles, aiding team carries and in-water casualty management.

• 1000kg (10KN) breaking load D rings attachments.

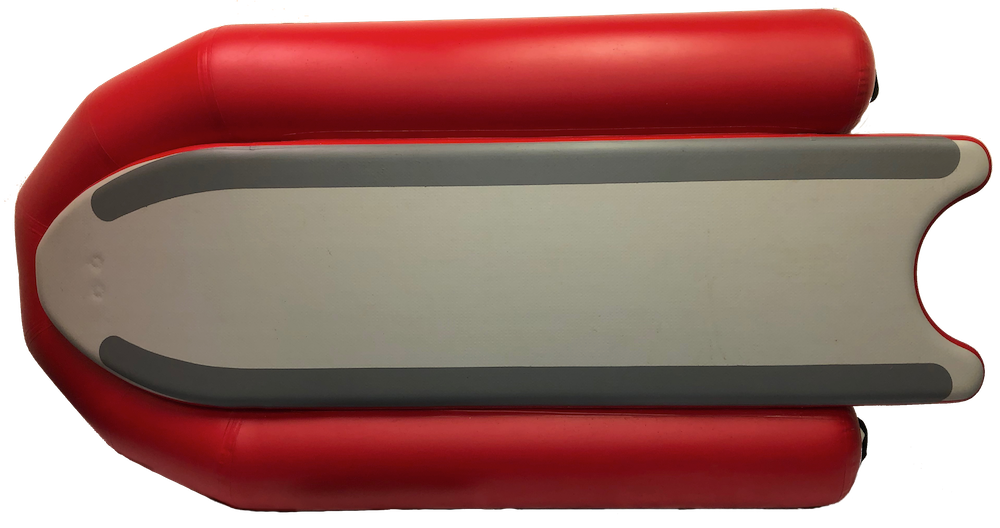

• 6" Airdeck hull - Using our factories world leading knowledge in stand up paddle board manufacturing we can offer inflatable hulls that match that superb shape, stiffness and form.

• 3 Chambers - The sled is built with 3 separate inflatable chambers, providing added security should one of the chamber become compromised.

• Reinforced hull - A additional fabric strake is added to the hull to increase durability in service.

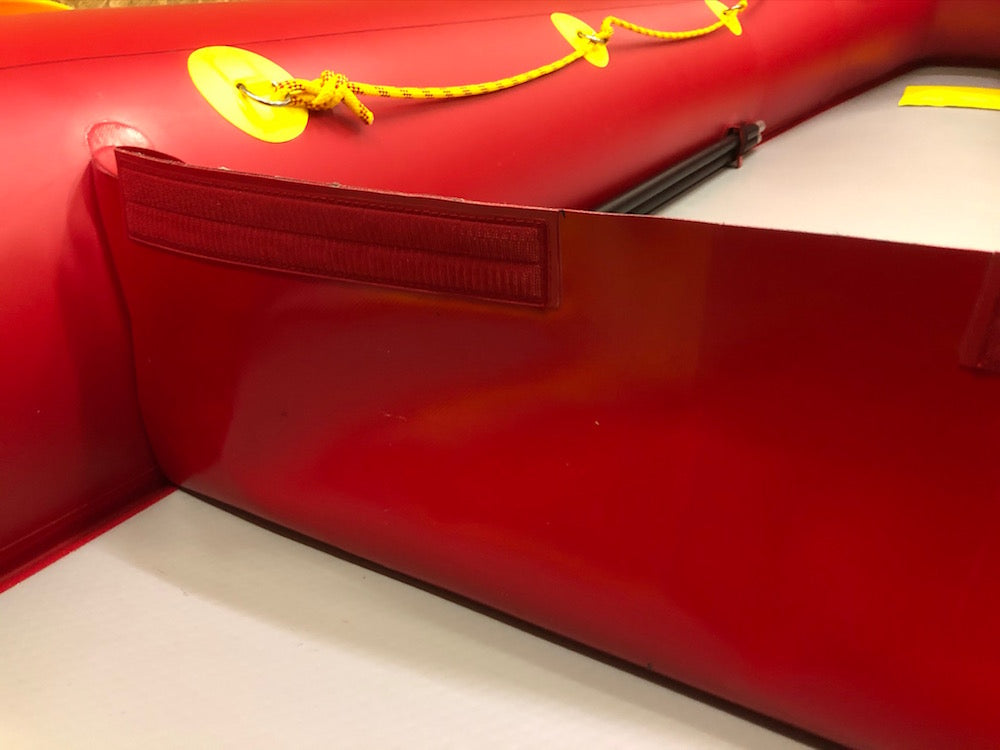

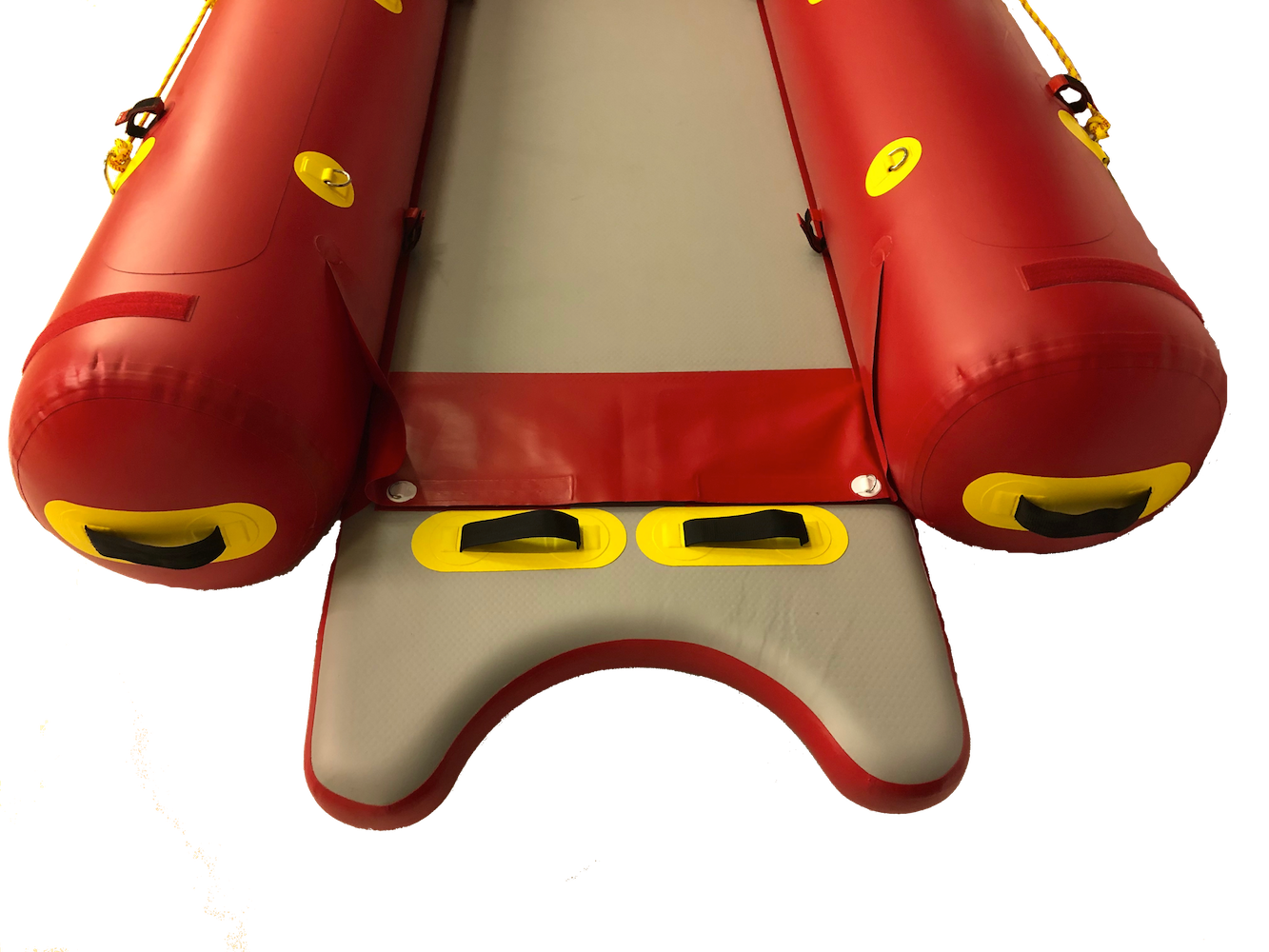

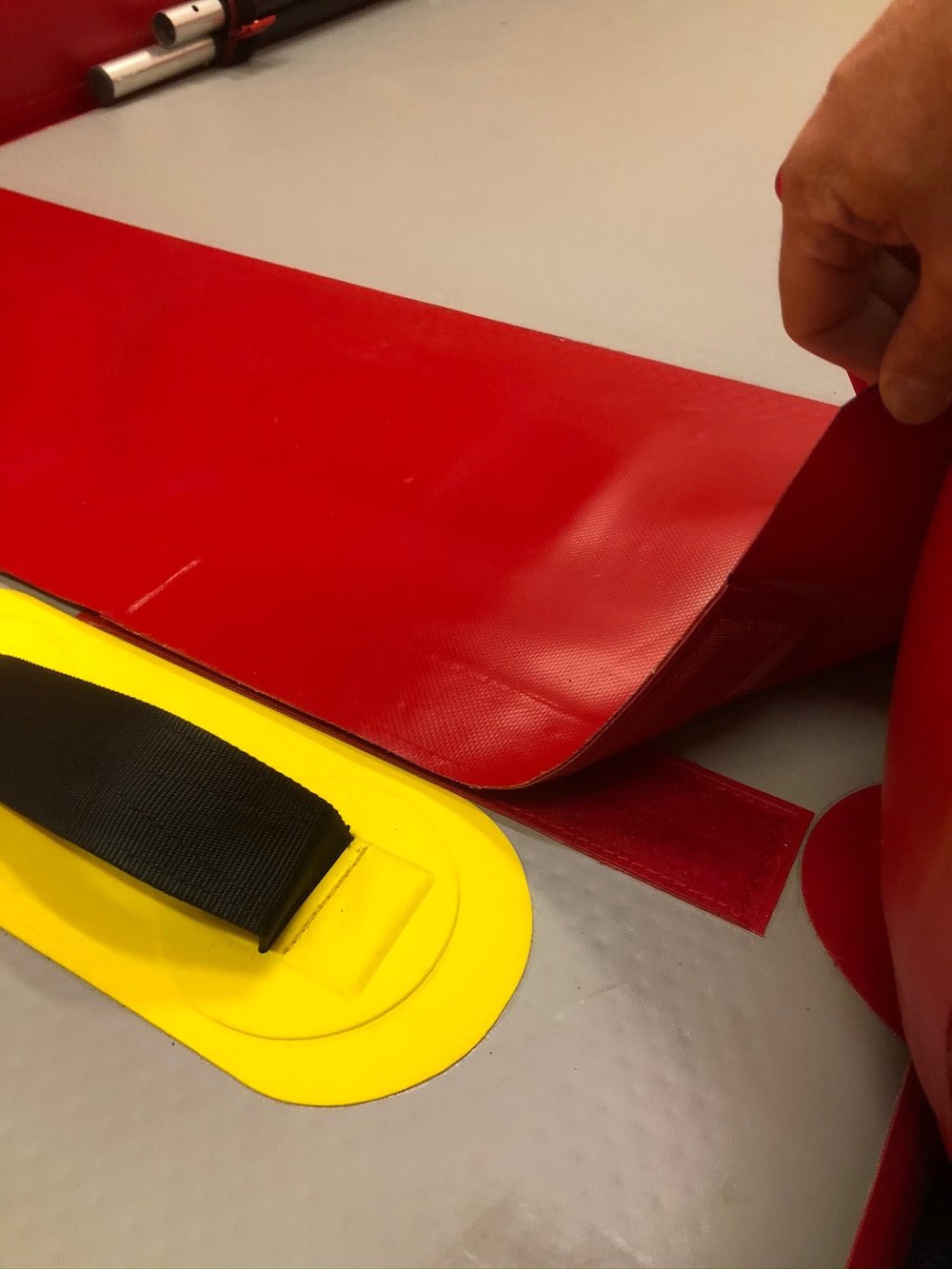

• Transom Flap - converting the Sled from open back self bailing craft to a sealed dry deck area for transportation of flood victims were staying dry is preferable.

• 6 Person craft - The sled has been designed to carry 6 occupants happy in swift water with the Transom Flap down.  When Transom Flap is in use the capacity is 1000kg approx 8-10 people.  (Note the when Transom Flap is used the craft is no longer self bailing)

Dimensions

Length - 363cm

Width - 180 cm.

Tube width - 52cm

Floor Thickness - 15cm (6")

Capacity - 6 people - 600kg / 1000kg with active Transom Flap

Weight - 32 kg

Propulsion - Canoe Style Paddles

Pack size - 120cm x 60cm x 35 cm

Valves - Leafield C7 and A6 Pressure Relief Valves on each Chamber.

D-Rings - 9 Stainless Steel each with a 1000kg Breaking Load

Warranty - 3 Years

Patent Pending "Transom Flap" design
